UD47 (ULS-47) Legger Press
UD47 (ULS-47) Legger Press UD47 (ULS-47) Legger Press

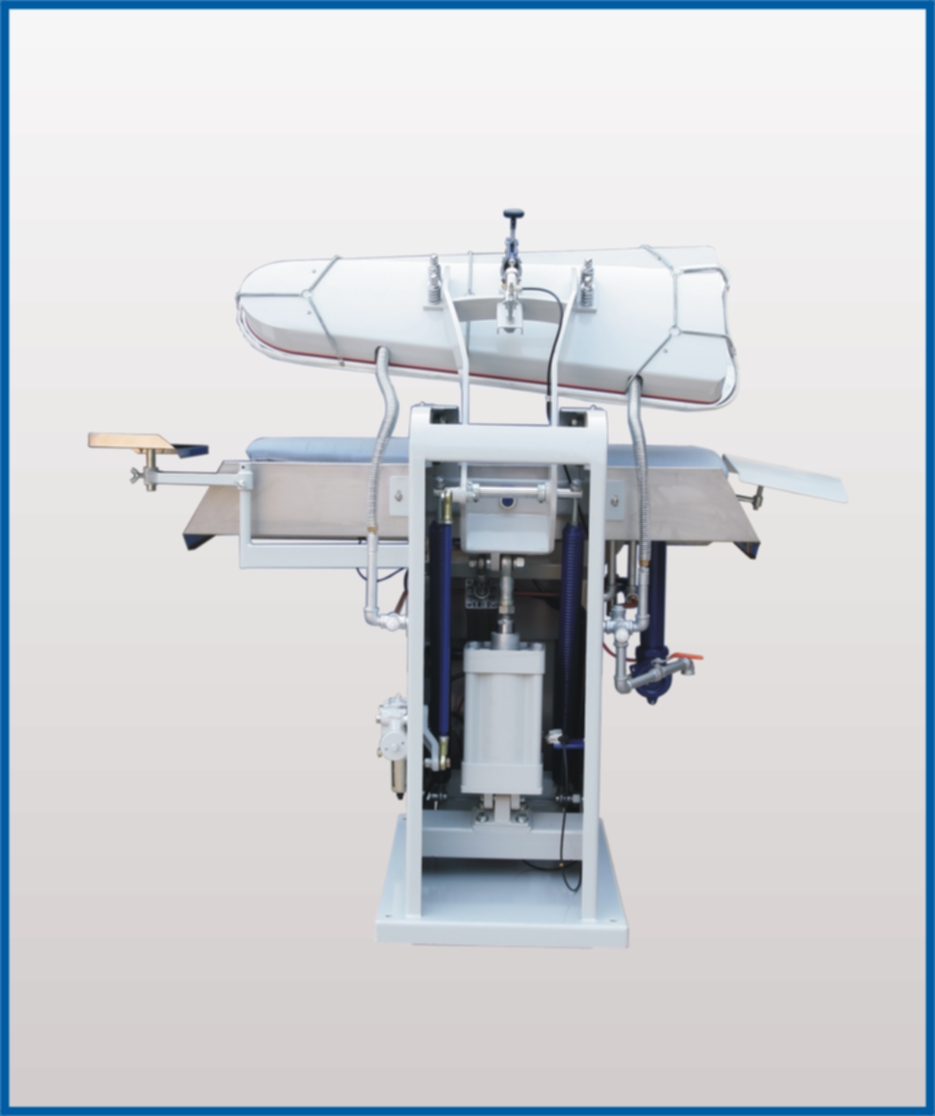

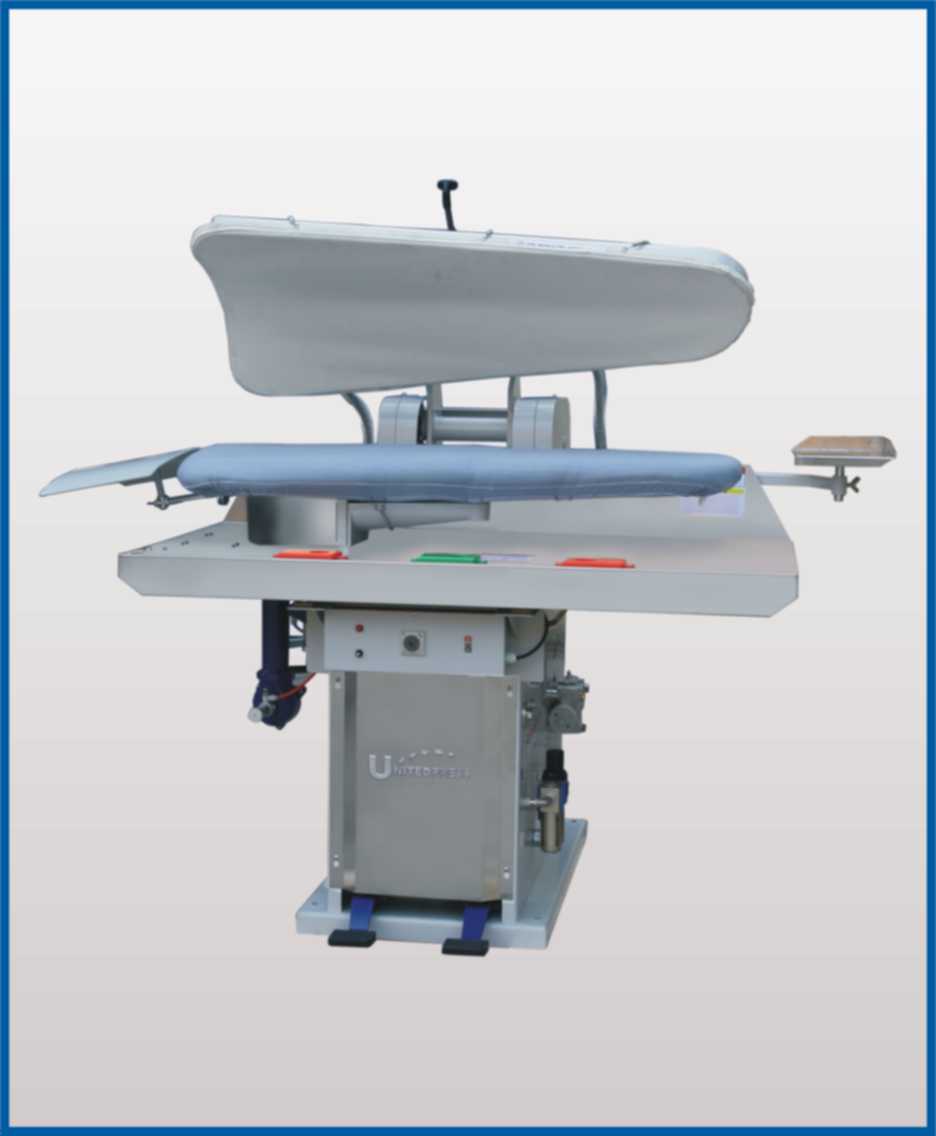

United Press model UD47 standard head steam press is well built, durable and simple to use with minimum maintenance.The light and smooth actions allow the operator to operate it more efficiently to increase productivity.

This United Press offers exclusive features,which provides a high quality finish to pant legs. The cutout allowing creasing of an entire leg to proper height in one length.

United Press model UD47 Legger Press includes the following standard features:

  • Standard stainless steel table, panel and iron stand.
  • Timer operated.
  • Two hand operation.
  • Aluminum cylinders.
  • 47 inch Legger standard head.
  • Heavy duty buck for durability.
  • Wide head opening.



SPECIFICATIONS
 Height of buck-padded  41"
 Lenght of buck-unpadded  44"
 Width of buck-unpadded  18 1/2"
   Width of machine  62 1/2"
   Depth of machine  42 1/2"
   Steam inlet  1/2" NPT
   Steam outlet  1/2" NPT
   Vacuum outlet  1 1/4" NPT
   Voltage/Hertz/Phase  AC 24V
 Steam pressure  125  PSI
   Air pressure  80 PSI
  Net weight  816 LBS
