UL42H (UPH-42) Laundry Hot head Press with vacuum
UL42H (UPH-42) Laundry Hot head Press with vacuum UL42H (UPH-42) Laundry Hot head Press with vacuum



For high efficiency and low cost  undoubtedly, United Press model UL42H with vacuum Laundry Press is one of the good choices for laundry industry.

United Press model UL42H with vacuum Laundry Press is includes the following standard features:

  • Standard: stainless steel table,panel and iron stand .
  • Standard vacuum with heat prove cylinder.
  • Safety bar and two hand operation require.
  • Timer operated, alarm protected .
  • Two separate aluminum cylinders.
  • Heat prove stainless steel vacuum cylinder.
  • A dual hydraulic check cushion head
  • Extra-large,rectangular color-coded buttons
  • Firmly padded buck made of steel wool,two flanner pads.

SPECIFICATIONS

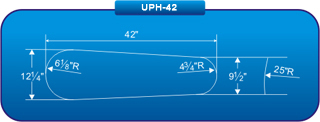

 Height of buck-padded  40"
  Lenght of buck-unpadded  42"
 Width of buck-unpadded  12 1/4"
 Width of machine  47 1/4"
  Depth of machine  42 1/4"
 Steam inlet  1/2" NPT
 Steam outlet  1/2" NPT
 Vacuum outlet  1 1/4" NPT
  Voltage/Hertz/Phase  AC 24V
 Steam pressure  125 PSI
  Air pressure  80 PSI
  Net weight  683 LBS
